Assembled valves

DRY VALVE

Print LinkedIn Email

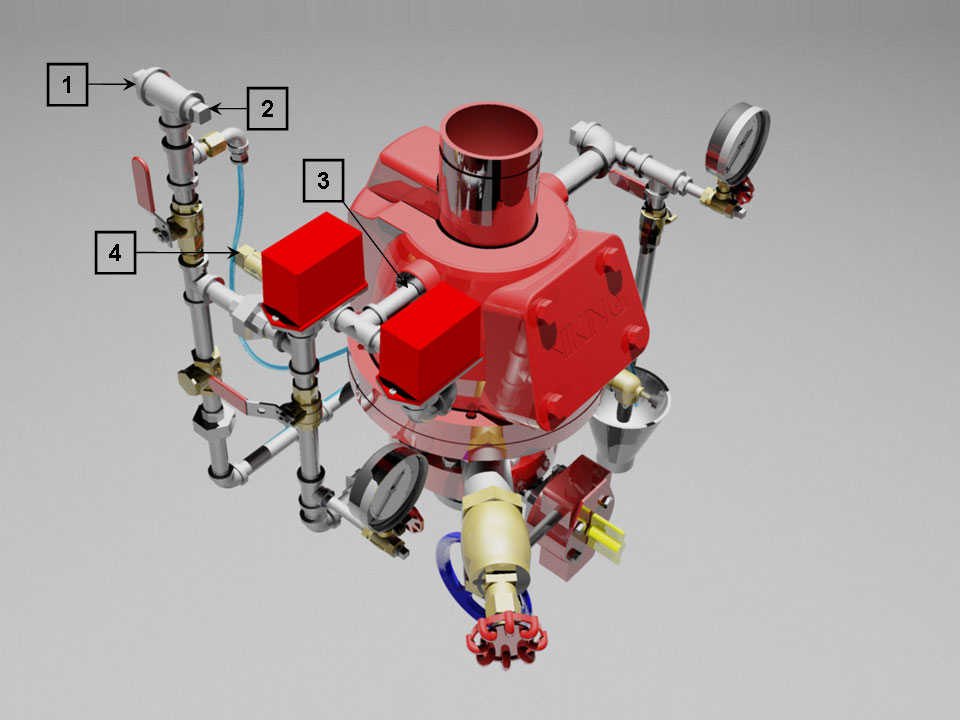

Browse through the assembled valve drawing for the main components identification.

Note: 4" valve illustrated. Also available in other sizes (see below).



Some description

   NOTE 1: ¾’’ NPT to water motor alarm (strainer required). NOTE 2: ½’’ NPT for electric alarm pressure switch to activate electric bell. NOTE 3: outlet to optional accelerator trim. NOTE 4: inlet to optional accelerator trim (and air supply). 1/16’’ Restricted Orifice 3/8’’ Connection ½’’ Ball Valve (n/o) 7/32’’ Restricted Orifice ½’’ Ball Check (spring loaded) PS10-1A Waterflow Pressure Switch 3/8’’ Polyethylene Tube– Part # 09880 ½’’ Check Valve ½’’ Ball Valve (n/c) PS40-2A Air Supervisory Switch Water Gauge ¼’’ 3 Way Valve 2’’ Angle Valve Supervised Butterfly Valve 1 ½’’ Drain Cup ¾’’ Drip Check D-3 4’’ Dry Valve ½’’ Ball Valve ¼’’ 3 Way Valve Air Gauge

DESCRIPTION PRODUCT CODE PRICE CODE
ACCELERATOR D-2 ASSY ON DRY VALVE 54TACCD200 $ 2,898.19 D
ACCELERATOR E-1 ASSY ON DRY VALVE 54TACCE100 $ 3,480.15 D
DRY SYSTEM ASSY GR/GR 3" #F-2 54TDPVIG30 $ 8,166.30 D
DRY SYSTEM ASSY FLG/GR 4" #F-1 54TDPVIP40 $ 8,715.33 D
DRY SYSTEM ASSY GR/GR 4" #F-2 54TDPVIG40 $ 8,715.33 D
DRY SYSTEM ASSY FLG/GR 6" #F-1 54TDPVIP60 $ 9,944.53 D
DRY SYSTEM ASSY GR/GR 6" #F-2 54TDPVIG60 $ 9,944.54 D
